Epson PrecisionCore Printheads
Equipped with 8 pcs Epson i3200 printheads. Powered by Epson PrecisionCore technology, born for fast speed and long-term running. Print up to 392 sqm/h.

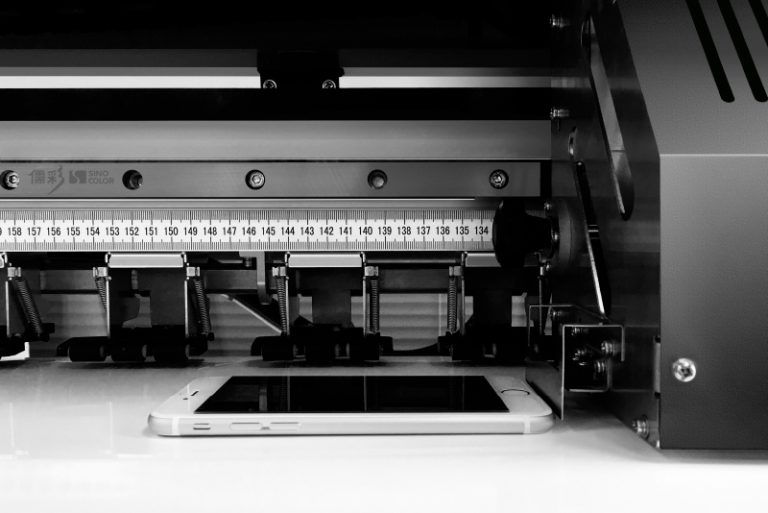

Anti-collision Function
Anti-collision system is equipped to protect the printhead and carriage all the time.
Heavy Duty Winder
Heavy duty winder with tension control to fit up to 1,000 meter/roll material.
Dual THK Guide Rail
Dual guide rail configuration. Guarantee the stability of long-term carriage movement under super fast speed.
True-to-life Color Rendition
Professional software with up to 8 colors printing. Brings you true-to-life color rendition.

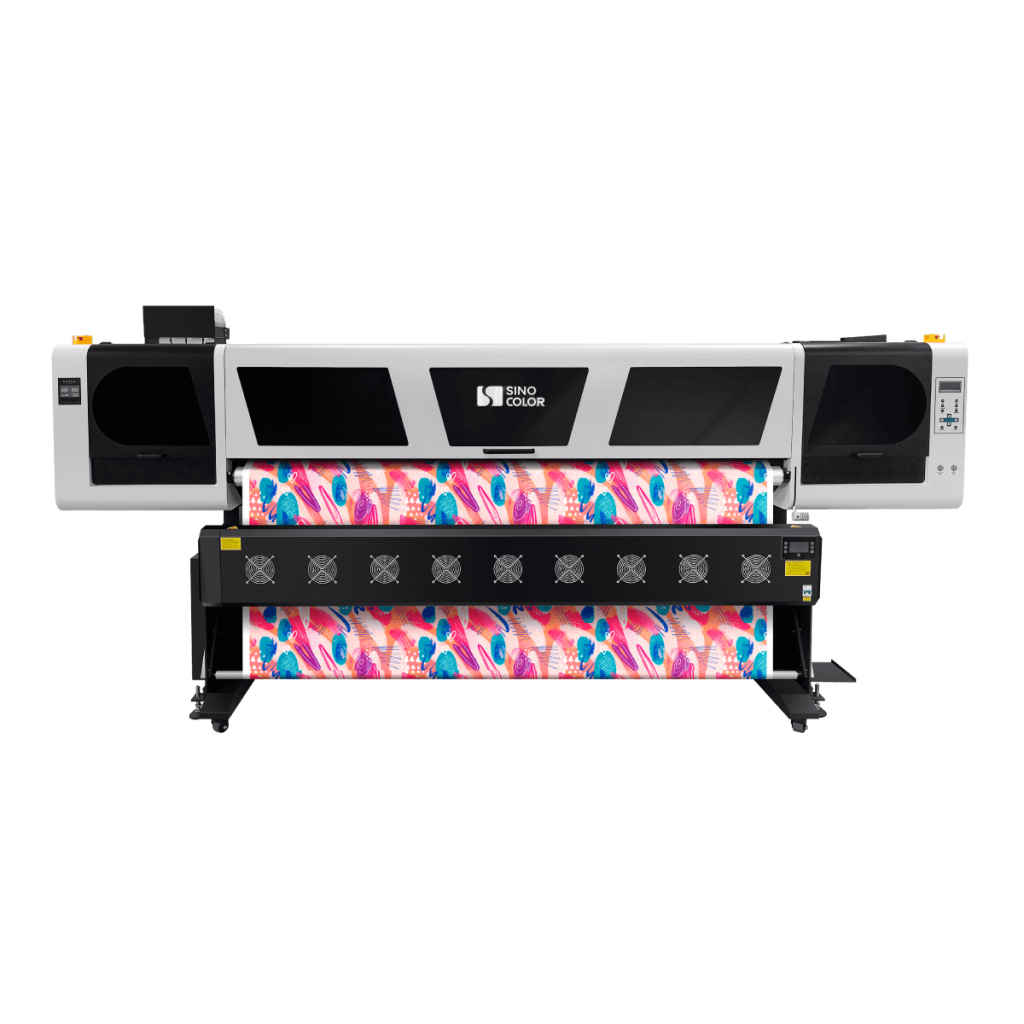

| Model No | WJ-2200S | WJ-3200S | |
|---|---|---|---|
| Printhead | 4/8 Epson i3200 | 4/8 Epson i3200 | |
| Resolution | 2400 dpi max | 2400 dpi max | |
| Media | Size | 2.2 meter | 3.2 meter |
| Types | Heat transfer paper | ||
| Speed | Printing Mode | CMYK, 8 Heads | |
| Production | 342 m2 /h | 392 m2 /h | |
| Quality | 183 m2 /h | 210 m2 /h | |
| Ink | Color | CMYK/ CMYK,Lc,Lm/ CMYK,R,G,B,O | |
| Type | Sublimation Ink | ||
| Cleaning | Automatic Cleaning, Anti-Clogging Flash Function & Capping System | ||
| Heating System | Pre/ Middle/ Post heating system & IR heater | ||
| Drying System | Equipped | ||
| Feeding & Take up | Heavy Duty Winder with Tension Control to Fit Up to 1,000 meter/ roll Material | ||
| Rip Software | MainTop (Standard) / FlexiPRINT (Optional) | ||
| Interface | USB 3.0 | ||
| Power | AC 110/ 220V, 50/ 60Hz | AC 110/ 220V, 50/ 60Hz | |
| Size&Weight | Machine | L3790×W1250×H1620 mm / 700KG | L4790×W1250×H1620 mm / 1050KG |
| Packing | L3920×W1380×H1790 mm / 1000KG | L4920×W1380×H1790 mm / 1500KG | |
